Frenger Export X-Wing® Chilled Beams to Barangaroo, Australia
Frenger exports their fully in house "UK Manufactured" energy efficient Chilled Beam Technology cooling units for use in high profile building projects worldwide. Barangaroo C2 (International House Sydney) is one of Frenger's recent exports.

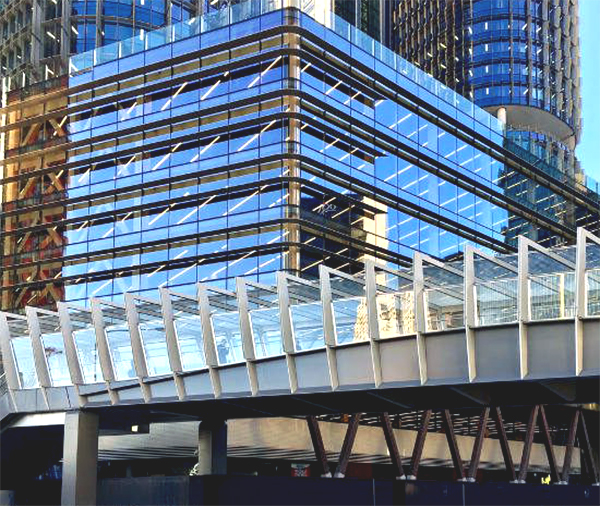

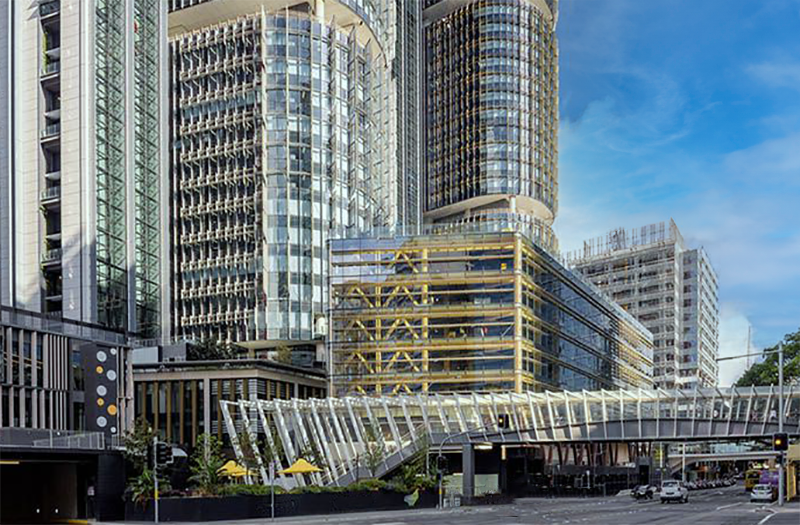

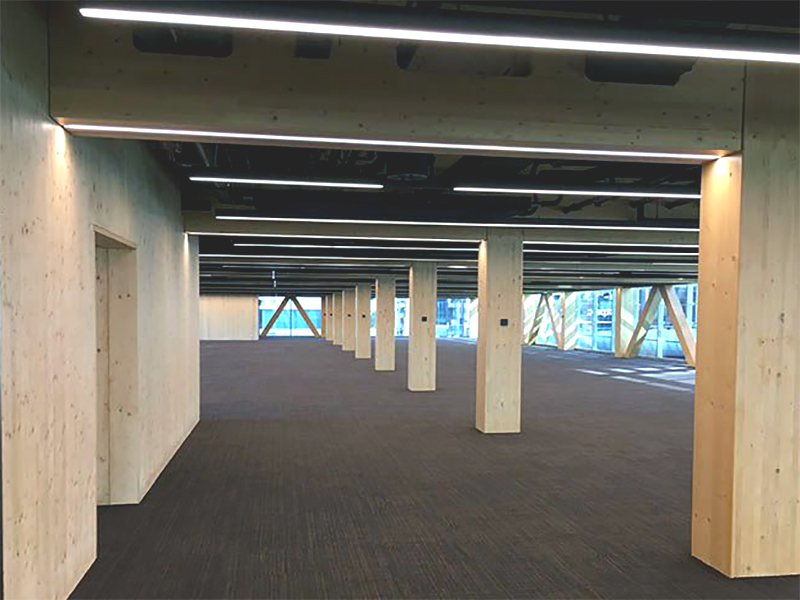

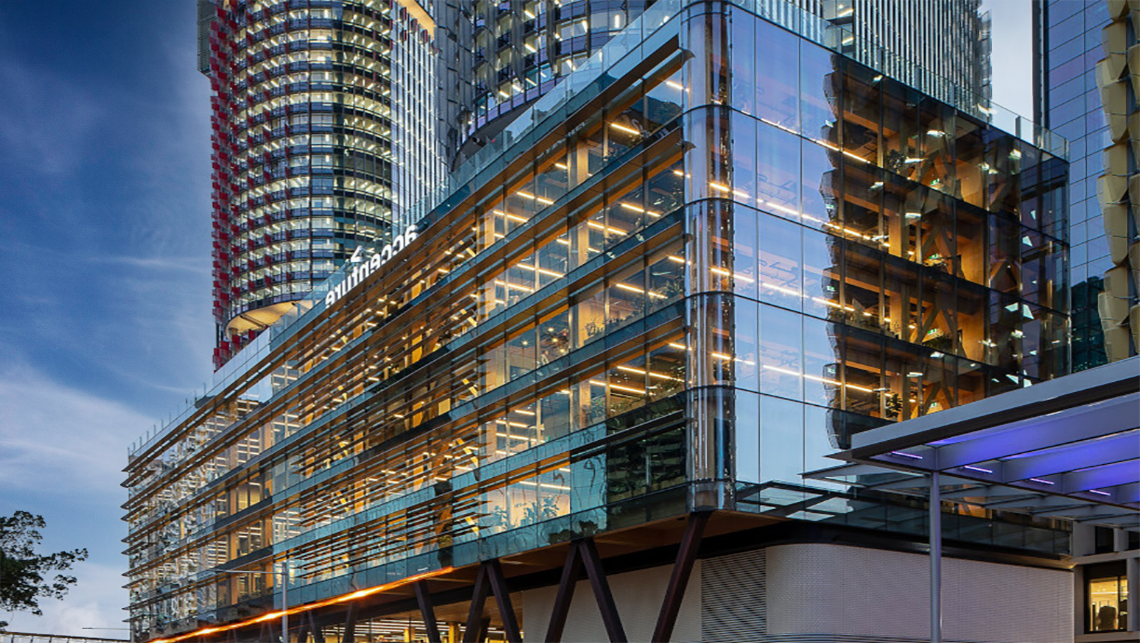

Barangaroo C2 is the first commercial office building (7,910m2 of office space) in Australia made completely from CLT (Cross Laminated Timber).
Located in the multi-billion Barangaroo development in Sydney's harbour side financial district, the six-storey building, designed by Tzannes Architects, is made from engineered wood becoming a benchmark in the use of sustainable building materials.

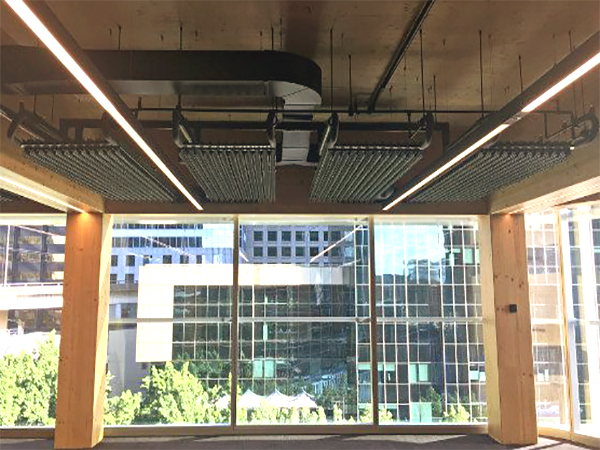

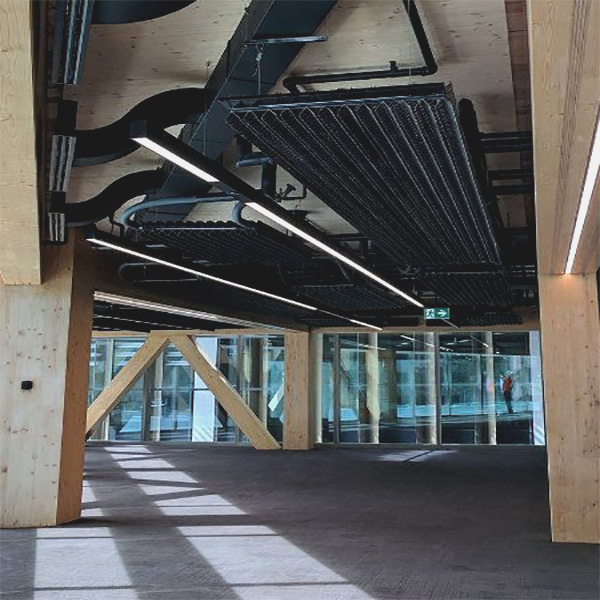

The building is part of Lendlease's push towards creating Australia's first large-scale carbon neutral community. Frenger's "Radiant" passive X-Wing® chilled beams were selected to help achieve this vision.
Our X-Wing® provides cooling by both Radiant and Convection. The products radiant quotient is approximately 40% of the total cooling effect, this proportion creates no air movement which offers high thermal comfort levels. The ability of the X-Wing® to cool using it's radiant effect means, when compared to an older fin coil passive type beam which is 95% convective, the X-Wing® product can deliver 40% more cooling without increasing the draught risk rating as only 60% of total cooling by air movement (convection).
X-Wing® is constructed from copper and aluminium and is 100 percent recyclable. The copper coil is produced by Frenger's in house fully automatic bespoke "state of the art" full CNC serpentine bending machine. This produces seamless sinusoidal copper coils (without any joins, hence no risk of water leakage) from 1000 meter drums of copper tubing with no joints what so ever.
Contact us at sales@frenger.com.au to find out more about Frengers top-of-the-range Chilled Beams.
