Prison - Radiant Heating Panel


The prison panels heat via water-carrying copper coils which are fixed within extruded Aluminium pipe seats. In turn, the pipe seats are securely bonded to the robust 2.0mm thick Steel outer casing. To optimise heat emission the heat is directed into the room by a layer of mineral wool insulation fitted to the reverse of the panel over the Copper coil. The units are made up into sets comprising at least one active section and a number of 'dummy' sections all to suit any particular environment and to simplify the installation process. All panels are finished in a tough polyester paint finish.

Installation

The prison panels is designed to be installed utilising the pre-drilled mounting rails supplied within the kit. For maximum security and to ensure full NOMS custodial property compliance it is important to install the product level and that any gaps due to building tolerance concealed are with suitable NOMS approved non-pickable sealant.

All fixing joints between the panel and pre drilled rail should be secured using suitable NOMS approved (M6 x 20 Stainless Steel countersunk screws) secure fixings and loctite compound.

Key Product Features

  • Manufactured from robust 2.0mm thick Steel plate.
  • Interleaf joints and angled side profiles with pre drilled holes to allow for secure fixing using suitable NOMS approved (M6 x 20 Stainless Steel countersunk screws) fixings and Loctite compound.
  • Standardised active sections are integrated with 'manufactured to suit' dummy sections - each installation tailored to meet the requirements of the selected environment.
  • Standardised panel widths to match most project requirements.
  • Simple to clean and hygienic.
  • Maintenance panel allows for simple but secure access to connection details and valve arrangements.

Panel Types

Ceiling Mounted Prison Panel

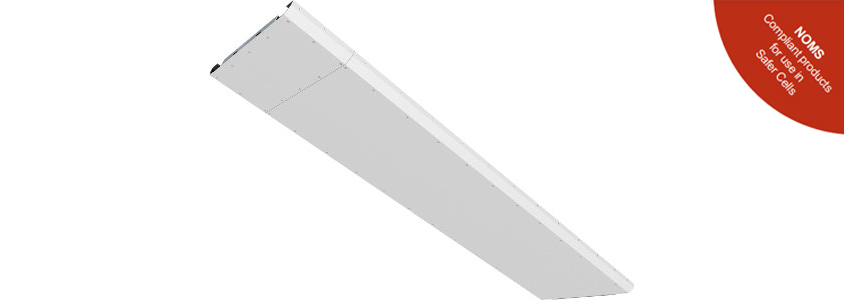

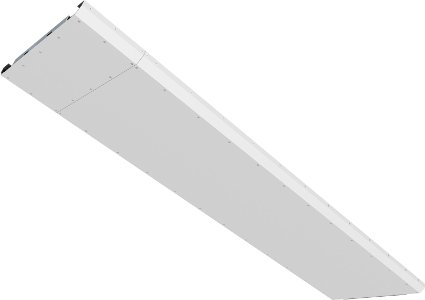

Ceiling Mounted Prison Radiant Heating Panel


The PCP Frengerwarm Ceiling Panel is a secure and efficient space heating product which is predominatly water driven heating LTHW or the panel can be supplied as electrical heated up to 580W/m². LTHW is available with heating capacities of up to 378 Watts per linear metre @ 57.5 dTk. All performance data supplied by Frenger® for this product is in accordance with the latest European Standard EN 14037.

The ceiling panel is designed to be installed using the pre-drilled mounting rails supplied within the kit. For maximum security, and to ensure full NOMS custodial property compliance, it is important to install the product level and that any gaps due to building tolerance are concealed with a suitable NOMS approved non-pickable sealant.

All fixing joints between the panel and pre-drilled rail should be secured using suitable NOMS approved (M6 x 20 stainless steel countersunk screw) secure fixings and loctite compound. The panel is simple top clean, with the maintenance panel also allowing for simple but secure access to connection details and valve arrangements.

Cornice Mounted Prison Panel

Cornice Mounted Prison Radiant Heating Panel


The secure and efficient PNP Frengerwarm Cornice Panel can achieve capacities of up to 378W/m @ 57.5dTk. Performance data for the Cornice Mounted Panel is in accordance with the latest European Standard EN 14037. Like with the ceiling mounted panel, the cornice mounted panel is designed to be installed utilising the pre-drilled mounting rails supplied with the kit.

The PNP Cornice Panel is available in three variants as standard: 335mm, 434mm, and 533mm. The variant selected will depend on room aesthetics and heating capacity requirements.

The PCP Cornice panel sections are supplied with heating circuit (active sctions) or without heating circuit (dummy sections). A panel set is usually a combination of a least one active section and a number of dummy sections tailored to suit the particular environment.

Low Level Wall Mounted Prison Panel

Wall Mounted Prison Radiant Heating Panel


The safe and secure PR Frengerwarm low level mounted panel can achieve capacities of up to 560 W/m @ 57.5 dTk. Similar to the other two mounting options, the panel is installed utilising the pre-drilled mounting rails, with the fixing joints between the panel and the pre-drilled rail being secured with suitable NOMS approved (M6 x 20 stainless steel countersunk screws) secure fixings and loctite compound.

The active radiator sections are available in any length up to 3000mm long and are sized to meet the heating requirements. Each panel set may include more than one active section dependent on space and capacity requirements.

The dummy radiator sections provided to finish a set and gain access to the pipe connections are available in lengths from 150mm up to 3000mm as required.

If you require any further information, or have a project to discuss, please contact us on 61 2 9006 1147 or sales@frenger.com.au as our technical team are here to assist.
