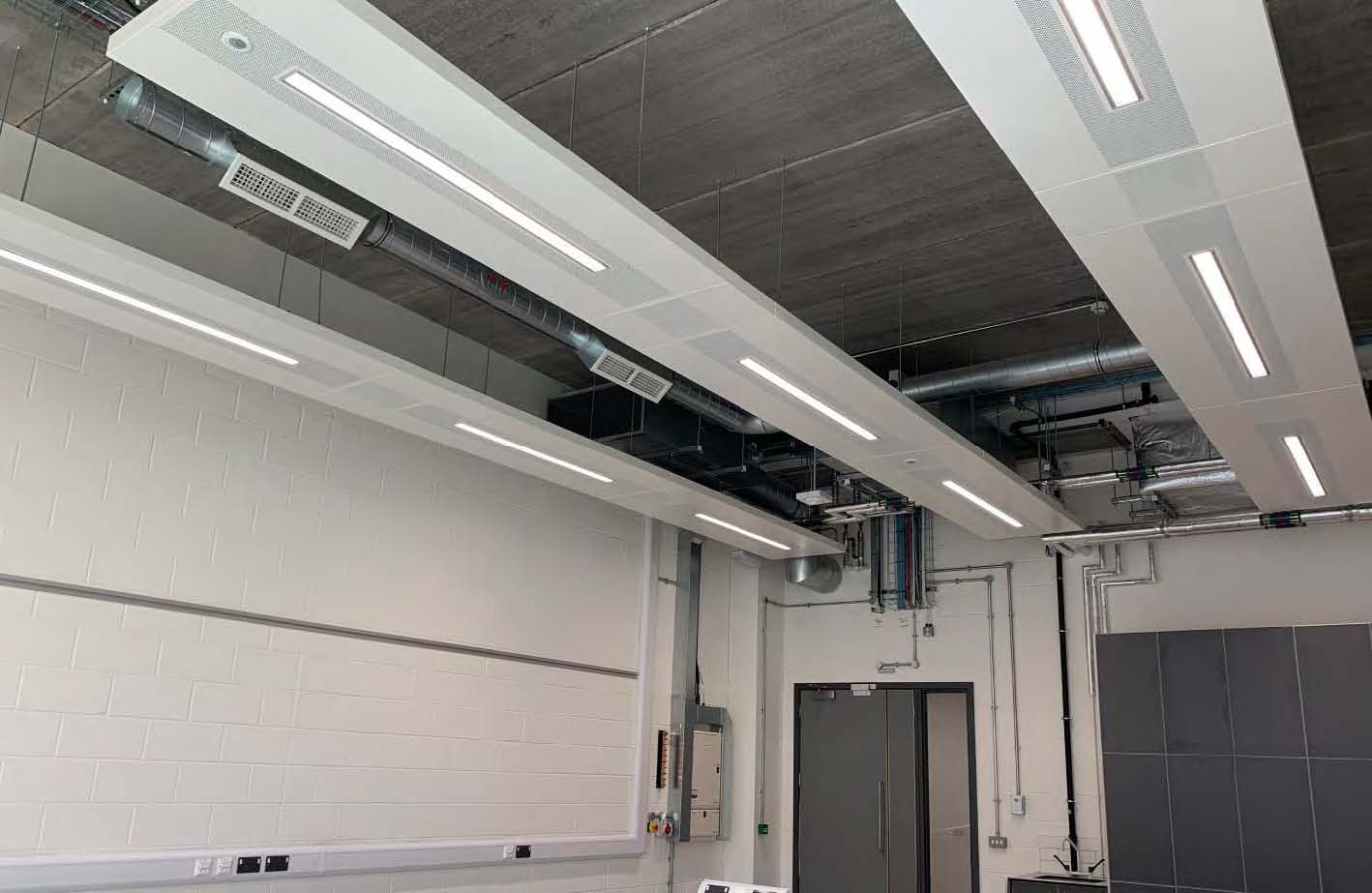

An image showing Frenger's® Multi-Service Radiant Heating Panels inside the NTU Engineering building

Using a combination of Radiant Panel and MSCB technology, Frenger's Acoustic, Lighting and Heating Rafts, otherwise known as Multi Service Radiant Panels (MSRP's) are a free hanging radiant heating panel which have integrated LED lighting and acoustic sound absorbing properties.

The source of the LTHW (low temperature hot water) heating element of the MSRP units is from our Modula SP (standard performance) and HP (high performance) water driven radiant heating panels.

These attractive units are 100% pre fabricated offsite in a controlled factory environment by Frenger and fully tested before dispatch , ready for simple ‘plug and play’ on site installation, which significantly reduces on site coordination and installation program time.

These are an ideal solution for schools, youth centres and universities as other services can also be incorporated such as apertures for sprinkler heads, compartment trunking for other electrical services, apertures for PA and VA speakers plus lighting control, PIR, Photocells and other building services.

Virtually any type of lighting solutions such as direct only, indirect only, combination of direct/indirect either from the same or different source can be accommodated and are designed, manufactured and safety tested in house.

The performance testing of Heating, Lighting and Acoustic solutions are also carried out in Frenger's in house Climatic, Photometric and Acoustic Laboratories and Frenger also make use of third party acoustic testing for independent verifications and accreditations.

MSRP-LDPD [Direct Prismatic LED MSRP with optional emergency conversion]

The MSRP-LDPD is 900mm wide and incorporates vertical sides with a depth of 69mm; the units incorporate a central Philips Zhaga compliant LED lighting module c/w a Multi-Layered Diamond Prismatic Diffuser. The luminaire and optics are available in a range of different sizes and outputs to meet the projects specific lighting requirements, option indirect lighting is also available.

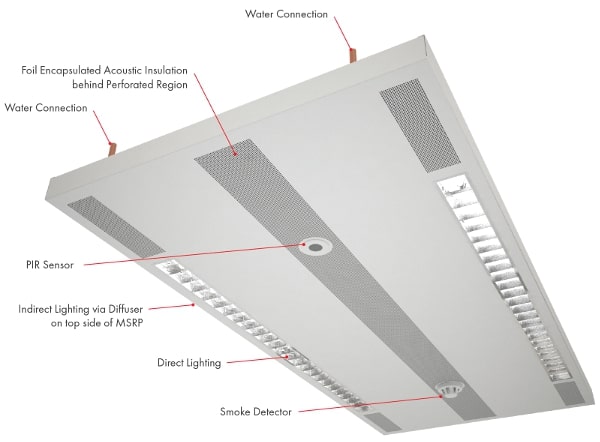

A graphic showing the top and bottom of Frenger's® Multi-Service Radiant Panel with a LED Diamond Prismatic Diffuser (LDPD)


MSRP-F-LDPD [Direct Prismatic LED MSRP with optional emergency conversion]

The MSRP-F-LDPD is 900mm wide and incorporates angled sides to offer an alternative aesthetic; the units incorporate a central Philips Zhaga compliant LED lighting module c/w a Multi-Layered Diamond Prismatic Diffuser. The luminaire and optics are available in a range of different sizes and outputs to meet the projects specific lighting requirements, option indirect lighting is also available.

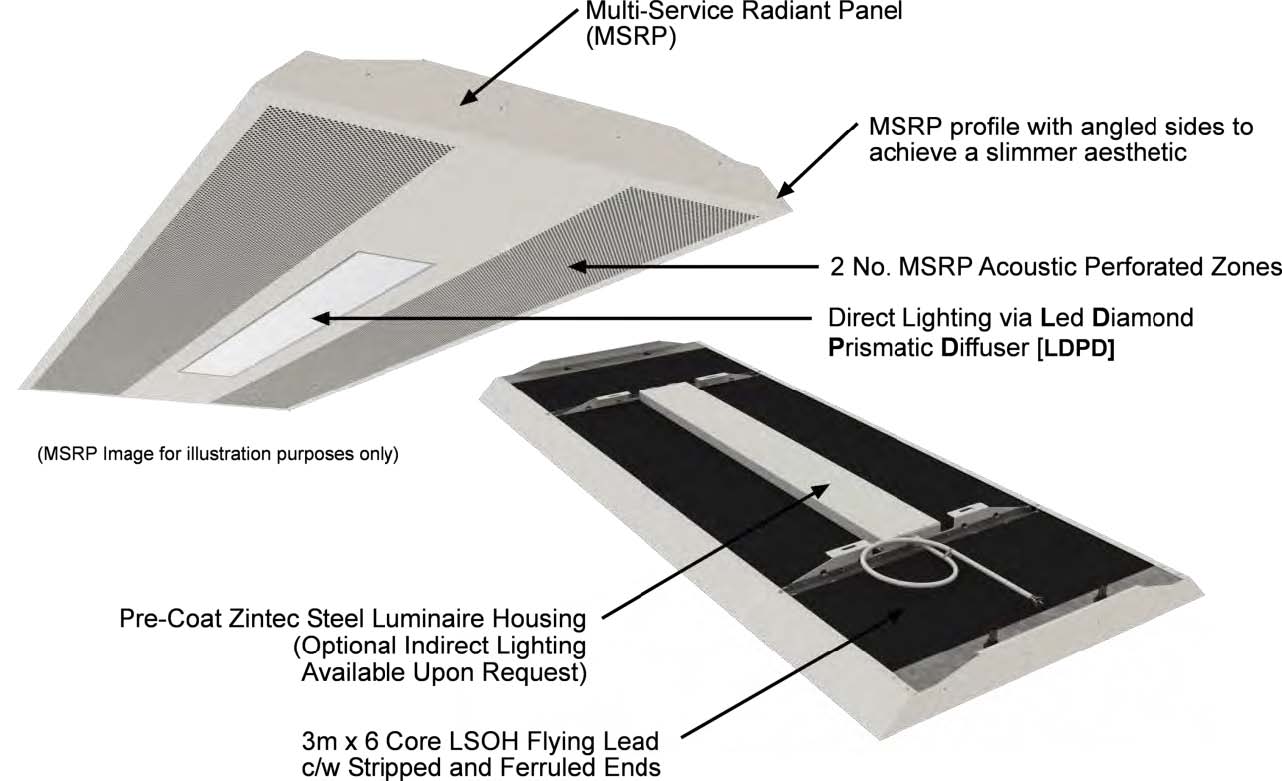

A graphic of Frenger's® Multi-Service Radiant Panel (MSRP) with LED Diamond Prismatic Diffuser (LDPD) and angled sides


Optional Services

The Frenger MSRP’s can be manufactured and supplied with many optional integrated services; PIR Presence Detectors and Loudspeakers can seamlessly be integrated within the non-acoustic / active zones of the radiant heating panel. Additional integrated services such as Conduit Wireways to provide additional cable containment for site fitted services can be pre-fitted to the rear of the MSRP.

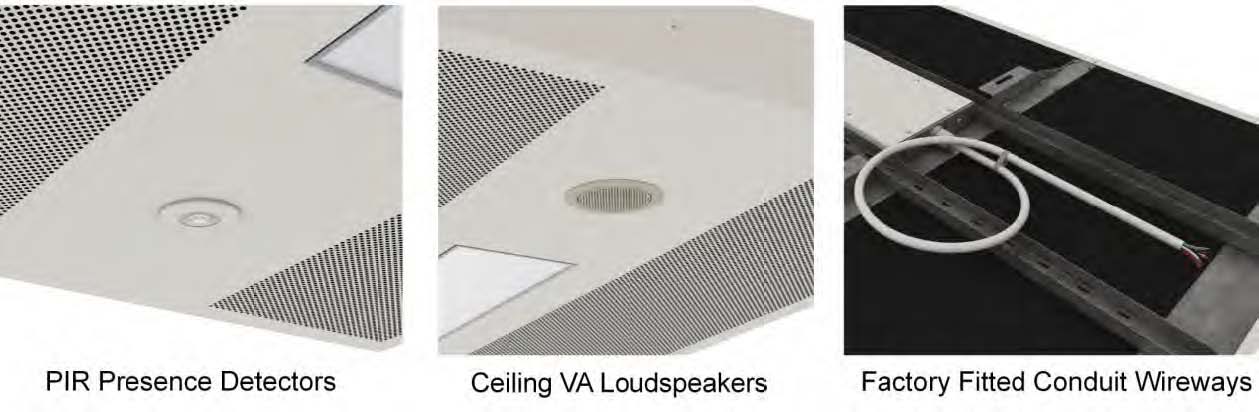

An image showing the three different features of Frenger's® Multi-Service Radiant Panels (MSRP)

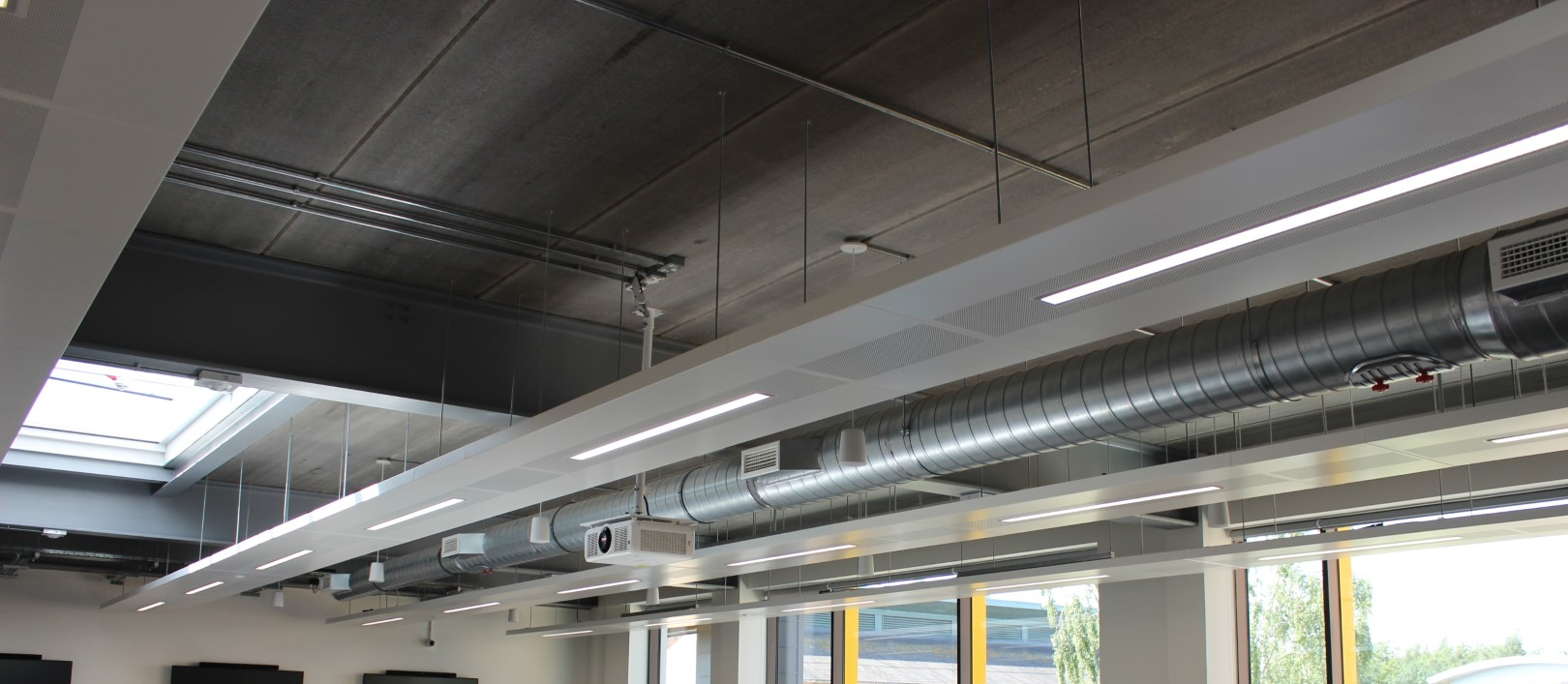

Another view of Frenger's® Multi-Service Radiant Panels in the NTU engineering building
